25 Amp Full-Wave Bridge Rectifier

Out of stock
Catalogue #
276-1185
£1.20

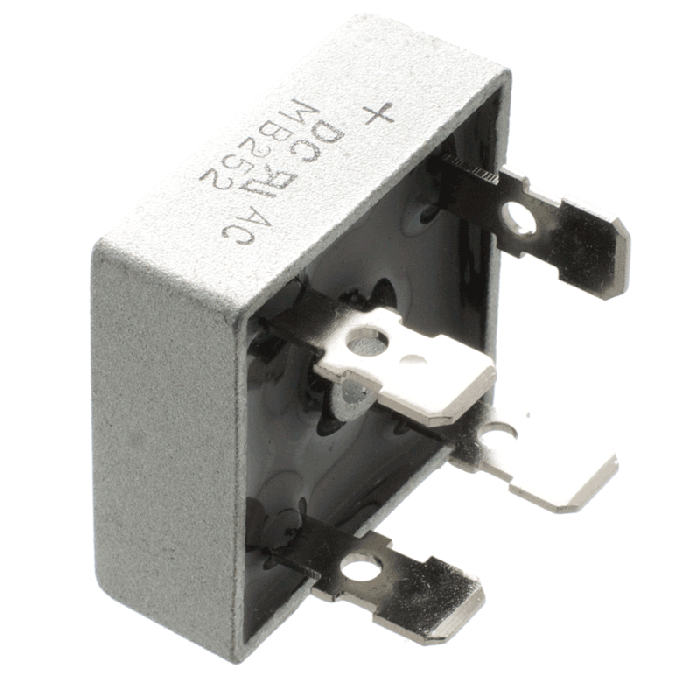

Metal cased 25A bridge rectifier for maximum heat dissipation. Center mounting hole. Rated 25amps.
Metal Clad Bridge Rectifier, 200V Repetitive Peak Reverse Voltage, 25A Average Forward Current, 400A Peak Forward Surge Current, 1.1V Forward Voltage, 10uA Reverse Leakage Current, Single Phases, MB-25 Case, -55°C to +150°C, 30g Weight, Single Hole Fixing, Metal Case for Maximum Heat Dissipation, Low Forward Voltage Drop, KBPC Series
More Information
Package N/A
