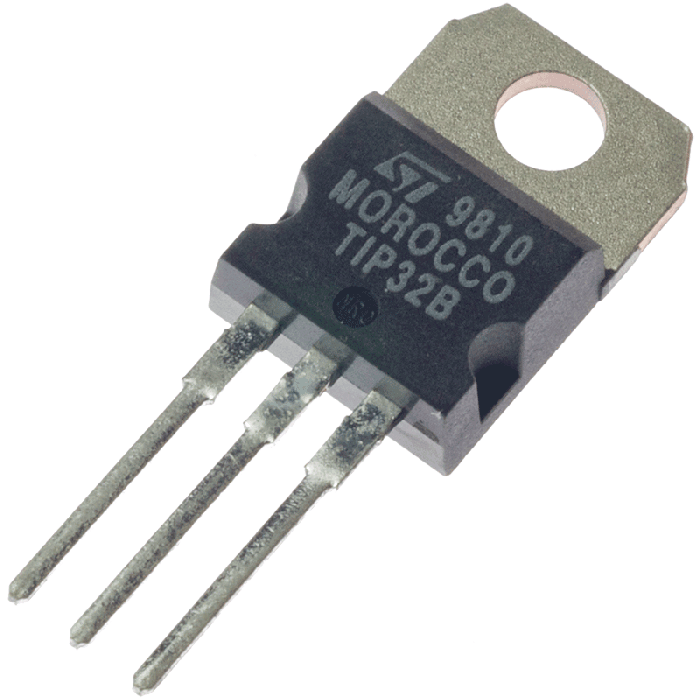

TIP32 PNP Power Transistor
TIP32 medium power PNP transistor.
3 Options TIP32A, TIP32B, TIP32C
The TIP32 is a silicon Epitaxial-base PNP power transistor in a TO-220 plastic package. It is intented for use in medium power linear and switching applications. Available with a choice of 3 maximum collector-emitter voltage ratings.
- TIP32A -60V
- TIP32B -80V
- TIP32C -100V
The complementary NPN type is TIP31.
|Maximum Collector Emitter Voltage||N/A|
|Maximum Collector Current (DC)||3A|
