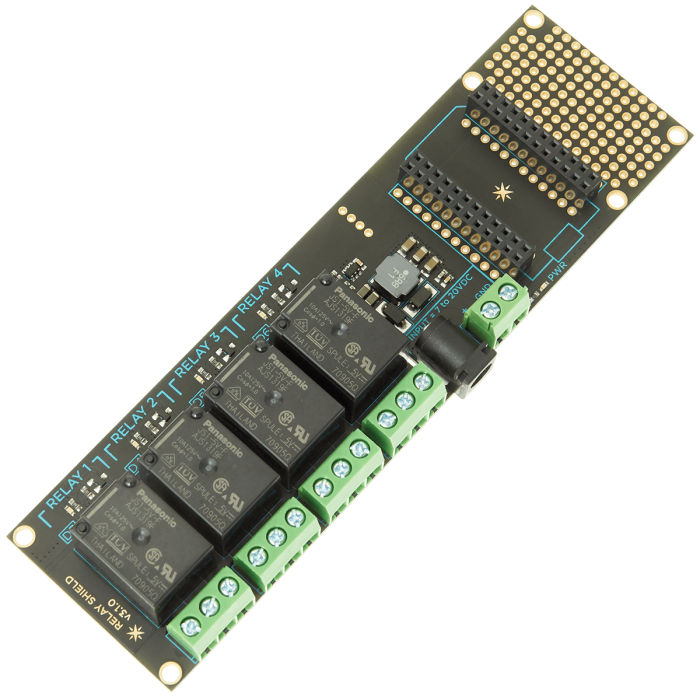

Particle Relay Shield for Photon

Out of stock
Catalogue #
980-3051
£30.00 £25.00

Regulate the power to a variety of electronics with this four Relay Shield for Photon!

The Relay Shield allows you to control any normal outlet or high voltage product from anywhere. The shield comes with four relays that are rated at a max of 220V @10Amp allowing you to control any electric appliance rated at under 2000 Watts.

Note that you *will* need a DC adapter to power the relays!

TECHNICAL DETAILS

  • Operating voltage: 7 to 15V DC
  • Current consumption: 150mA min to 290mA (at 9V DC)
  • Relay Max Voltage: 250V AC
  • Relay Max Current: 10Amp at 125V AC
  • Compatible with both the Core and the Photon.
  • Dimensions: 152.7mm x 46mm x 18.2mm / 6" x 1.8" x 0.7"
  • Weight: 82.2g
