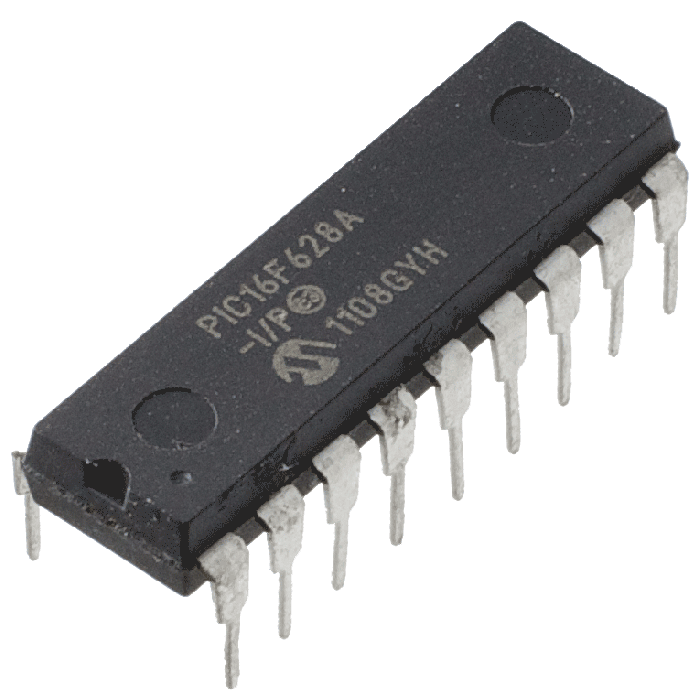

PIC16F628A-I/P Microcontroller
Microchip 8-bit PIC 16F628 Microcontroller
- IC, 8BIT FLASH MCU, 16F628, DIP18
- Controller Family/Series:PIC16F
- Core Size:8bit
- No. of I/O's:16
- Program Memory Size:2 Kwords
- EEPROM Memory Size:128Byte
- RAM Memory Size:224Byte
- CPU Speed:20MHz
- Oscillator Type:External, Internal
- No. of Timers:3
- Peripherals: Comparator, PWM, Timer
- No. of PWM Channels:1
- Digital IC Case Style:DIP
- Supply Voltage Range:3V to 5.5V
- Operating Temperature Range:-40°C to +85°C
- No. of Pins:18
- SVHC:No SVHC (20-Jun-2011)
- Clock Frequency:20MHz
- Device Marking:PIC16F628A-I/P
- Flash Memory Size:3.5KB
- IC Generic Number:16F628
- IC Temperature Range:Industrial
- Interface:USART
- Interface:USART
- Interface Type: USART
- Logic Function Number:16F628A
- Memory Size:2KB
- Memory Type:FLASH
- Microprocessor/Controller Features:BOD, COMP, ICSP, POR, TIMERS, WDT
- No. of Bits:8
- No. of I/O's:16
- Operating Temperature Max:85°C
- Operating Temperature Min:-40°C
- Package / Case:DIP
- RAM Size:224Byte
- Supply Voltage Max:5.5V
- Supply Voltage Min:3V
- Termination Type:Through Hole
| Package | DIP-18 |
|---|---|
| Architecture | 8-bit |
