LD1117AV33 3.3V Voltage Regulator

Out of stock
Catalogue #
276-11733
£0.72 £0.60
  • Buy 10 for £0.68 £0.57 each and save 6%
  • Buy 100 for £0.50 £0.42 each and save 31%

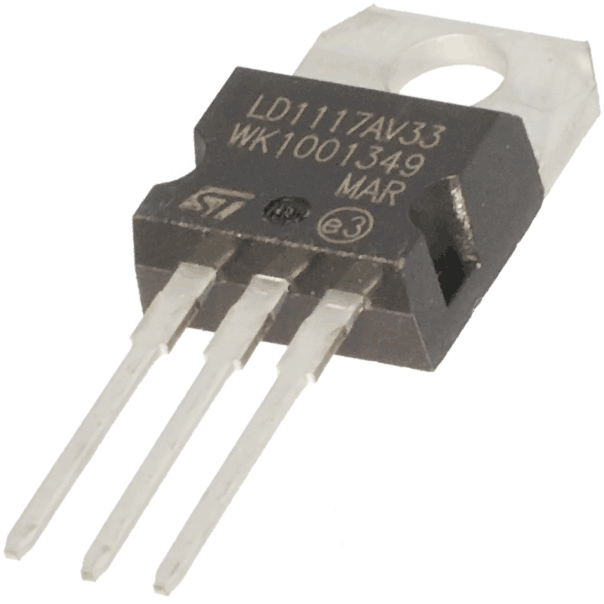

The LD1117AV33 is a low drop voltage regulator able to provide up to 1A of output current.

The LD1117A33 is a low drop voltage regulator able to provide up to 1A of output current at a 3.3v fixed voltage.
High efficiency is assured by an NPN pass transistor. Only a very common 10 μF minimum capacitor is needed for stability. Chip trimming allows the regulator to reach a very tight output voltage tolerance, within ± 2% at 25 °C.

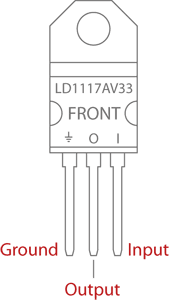

LD1117AV33 Illustration

To use the regulator connect a voltage of between 4.45 and 10V to the input terminal and 3.3V will be provided on the output terminal.

A heatshink is recomended when using over 500mA of current.

More Information
Package TO-220
