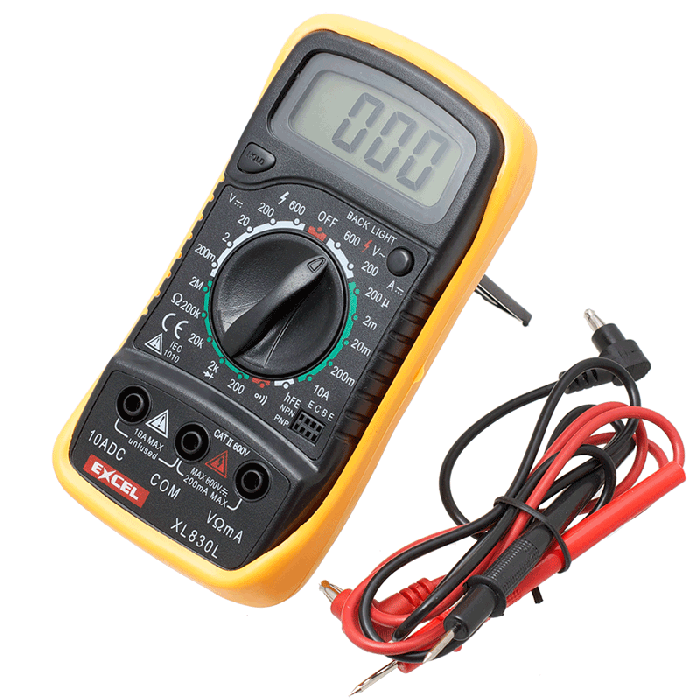

Digital Multimeter with Continuity Buzzer

In stock
Catalogue #
22-7002
Rating:
100 % of 100
£5.99 £4.99

Circuit tester with continuity buzzer.

Great value Digital LCD Multimeter for measuring Voltage, Current, Restance with continuity buzzer and Transistor hFE test.

DC VOLTAGE

  • Display: Blue Backlight LCD, 1999 counts, updates 2-3/sec
  • Measuring method: Dual-slope A/D Converter
  • Operating Environment: 0 to 40 °C
  • Storage Temperature: -10°C to 50°C
  • Power: 9V Battery
  • Fuse Protection: 200mA/250V
  • Size: 138mm x 69mm x 31mm
  • Weight: Approx. 280g
  • Measurement Range 200VmV-600V
  • ±0.5% of rdg ± 2 digits
  • Overload Protection: 250V rms

AC VOLTAGE

  • Measurement Range: 200V-600V
  • ±1.2% ± 10 digits
  • Overload Protection: 600VDC or rms

DC CURRENT

  • Measurement Range: DC 2000-10A
  • ±1% of rdg ± 2 digits
  • Overload Protection: F 200mA/250V fuse (10A range unfused)



RESISTANCE

  • Measurement Range 200 Ohms - 2M Ohms
  • ±0.8% of rdg ± 3 digits
  • Maximum Open Circuit Voltage: 3.2V
  • Overload Protection: 250VDC or rms

TRANSISTOR

  • Measurement Range hFE TEST (0-1000)
