Adafruit SMT Breakout PCB for SOIC-8, MSOP-8 or TSSOP-8 (6 Pack)
Out of stock
Beguiled by a fancy new chip that is only available in a SOIC or MSOP/(T)SSOP pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 8-TSSOP/8-MSOP pin out with traces going to two rows of 0.1" spaced holes, the other has 8-SOIC. Solder your chip to either side and you're ready to rock on any solderless breadboard.

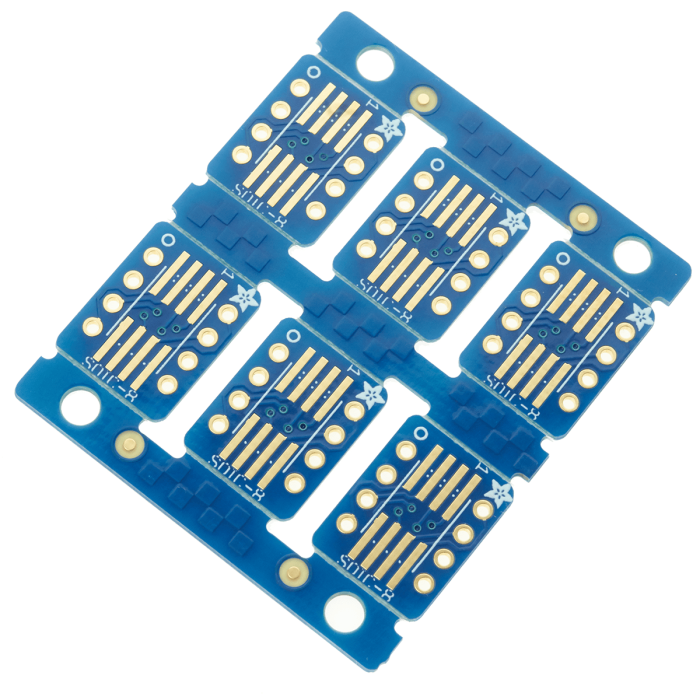

Comes as a single pre-scored PCB that is easily snapped apart to provide six identical SMT Breakout boards that support either a SOIC (narrow, medium or wide variety) or TSSOP.
Produced on a half-thickness PCB, with 0.3" spacing between the two rows.
