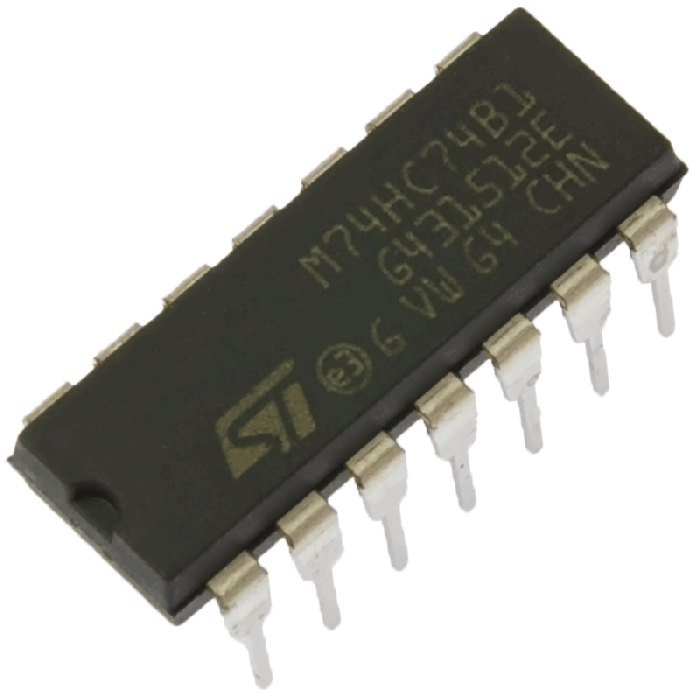

74HC74 Dual D-Type Flip-Flop

In stock
Catalogue #
276-8274
£0.25 £0.21
  • Buy 5 for £0.19 £0.16 each and save 24%

dual D positive edge triggered flip-flop with preset and clear
The 74HC74 is a dual positive edge triggered D-type flip-flop. Having individual data (nD), clock (nCP), set (nSD) and reset (nRD) inputs, and complementary nQ and nQ outputs. Data at the nD-input, that meets the set-up and hold time requirements on the LOW-to-HIGH clock transition, is stored in the flip-flop and appears at the nQ output. Schmitt-trigger action in the clock input, makes the circuit highly tolerant to slower clock rise and fall times.
More Information
Package DIP-14
