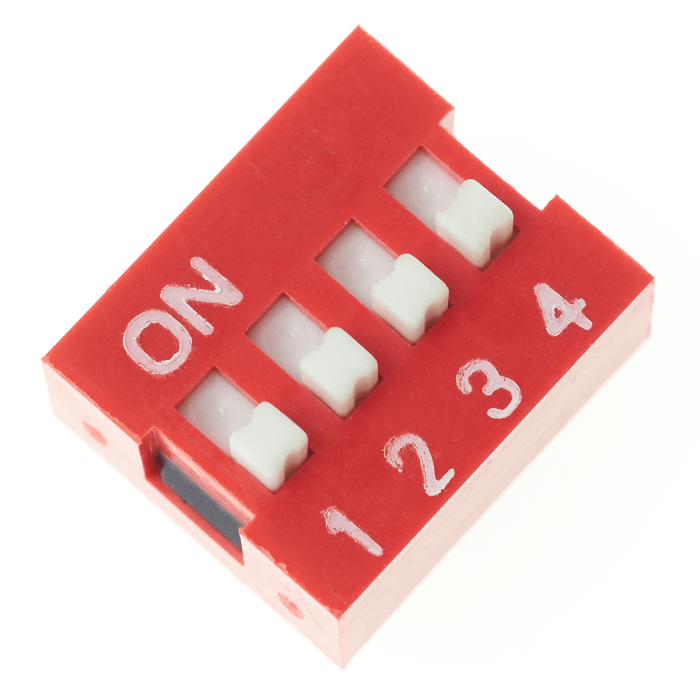

4 Way DIP Switch

Out of stock
Catalogue #
£0.59 £0.49

4 position switch in a standard 8pin DIL package.

DIL Switch, SPST Contact, Slide Actuator, 25mA Contact Current, 24Vdc Contact Voltage, 4 Position, Phosphor Bronze Contact, Gold Plated, 800gf Operating Force, 50mR Contact Resistance, -25°C to +70°C Operating Temperature, 7.62mm Row Pitch, 2.54mm Lead Pitch, 11.7mm Long, 4.2mm Wide, 9.7mm High, Dual in Line Laterally Operated Switch, Designed to be End Stacked, On/Off Status is Clearly Defined on the Switch, Gold Plated SPST Contacts Housed in Red Moulded Bodies, Sealed Bases to Prevent Flux Contamination, Flame Retardant to UL94V-0, Ideally Suited for Multiple Programming Functions i.e, Computers, Communications Equipment, Remote Control etc.
