5mm Full Colour (RGB) LED Common Cathode

In stock
Catalogue #
276-028
£0.89 £0.74
  • Buy 5 for £0.80 £0.67 each and save 10%

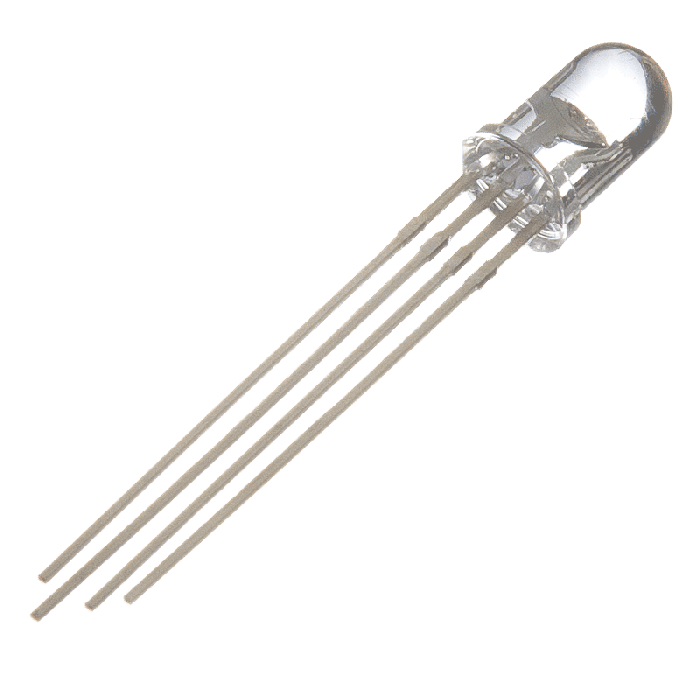

5mm LED with four pins

These 5mm LEDs have four pins - Cathode is the longest pin. One for each color and a common cathode. Use this one LED for three status indicators or pulse width modulate all three and get mixed colors!



  Forward
Voltage(V)
Dominant
wavelength(mm)K

LuMen(LM)
If=20mA

Reverse
current(uA)
  Min Typical Minimum Typical Minimum Typical Maximum
Red 2.1 2.4 620 630 4000 5000 10
Green 3.0 3.4 520 530 7000 9000 10
Blue 3.0 3.4 460 465 5000 6000 10
